ZX-LT400
Primary Shaping Non woven Box Bag Making Machine
Features:
This machine adopts mechanical, optical, electrical and pneumatic integration technology, suitable for feeding the roll material of non-woven fabric and laminated non-woven fabric. It's a specialized equipment for making the primary shaping non-woven(laminated) three dimensional bag(no need to turn the bag inside out). This equipment features stable production, strong and decent sealing of bags, good looking, top grade, fancy and reusable, mainly applied in the field of non-woven wine packing, beverage packing, gift bags and hotel promotional bags etc.
This machine adopts LCD touch screen and equipped with stepping motor for fix length, photoelectric tracking, auto positioning and auto rectifying deviation, which is accurate and stable, has the function of auto counting, auto handle sealing, auto bag pile and auto alarming when reach the setting numbers etc. It is the most advanced equipment for non-woven bag making in the market at present.
Process:
Roll Material---Cross Folding---Handle Sealing-Indentation---Cutting---Forming
---Thermal Bonding---Automatic Bag Pile---Collection
Main Technical Variables:
Bag Smaples:
Three dimensional laminating bag machine:
Packing & Delivery:
About Zhengxin:
FAQ:
1. How long will your engineer reach our factory?
Within one week after machine arrival your factory.
2. How many days will you finish installing ?
We will finish installation and training within 15days.
3. What should we charge for your engineer?
You should charge for the cost of our engineer's visa , air tickets, hotel, food ,and also their salary 80USD one day per person.
4. How long is your machine's warranty period?
All our machine have one year guarantee, starting from finished installation.
5. How could we do after one year warranty period?
We also can do service for you, but you need pay salary for my technician 80USD/day.
6. How could we do if the parts broken within warranty?
We would express the free replacement parts during the warranty date.
7. Does your engineer understand English?
Our engineer understand a little English. All our engineer have more than five years machine installation experience. In addition, they can use body language to communicate with customer.
8. Can you help us find any engineer in our location?
Of course, we will check and inform you as soon as possible.
9. How do we solve the machine problem after your engineer leaving?
Generally speaking, there will be no problem after finish installing. In case you have any problem. You can contact our sales at any time. Our engineer will take a solution video according your description.
10. How many worker do we need running those machines?
Except Two for bag making machine, flexo printing, slitting, ultrasonic sewing, hydraulic punching machine only need one person for each.
More Details , Kindly contact with me.
Name: Lydia Liu
Mob : 0086-13736787676
Primary Shaping Non woven Box Bag Making Machine
Features:
This machine adopts mechanical, optical, electrical and pneumatic integration technology, suitable for feeding the roll material of non-woven fabric and laminated non-woven fabric. It's a specialized equipment for making the primary shaping non-woven(laminated) three dimensional bag(no need to turn the bag inside out). This equipment features stable production, strong and decent sealing of bags, good looking, top grade, fancy and reusable, mainly applied in the field of non-woven wine packing, beverage packing, gift bags and hotel promotional bags etc.
This machine adopts LCD touch screen and equipped with stepping motor for fix length, photoelectric tracking, auto positioning and auto rectifying deviation, which is accurate and stable, has the function of auto counting, auto handle sealing, auto bag pile and auto alarming when reach the setting numbers etc. It is the most advanced equipment for non-woven bag making in the market at present.
Process:
Roll Material---Cross Folding---Handle Sealing-Indentation---Cutting---Forming
---Thermal Bonding---Automatic Bag Pile---Collection
Main Technical Variables:
| Type | ZX-LT400 |
| Bag material width | 60-1100 |
| Production Speed | 20-30pcs/min |
| Bag Height | 200-400mm |
| Bag Width | 240-500mm |
| Width of Bag Gusset | 60-180mm |
| Length of Bag Handle | 380-560mm |
| Material Basis Weight(thickness) | 60-150g |
| Total Power | 30KW |
| Air Flow and Pressure | 1.2m3 /min 1.0MPA |
| Power Source | 380V/50HZ |
| Dimension(L*W*H) | 7200x2200x3600mm |
| Weight | 6000Kg |

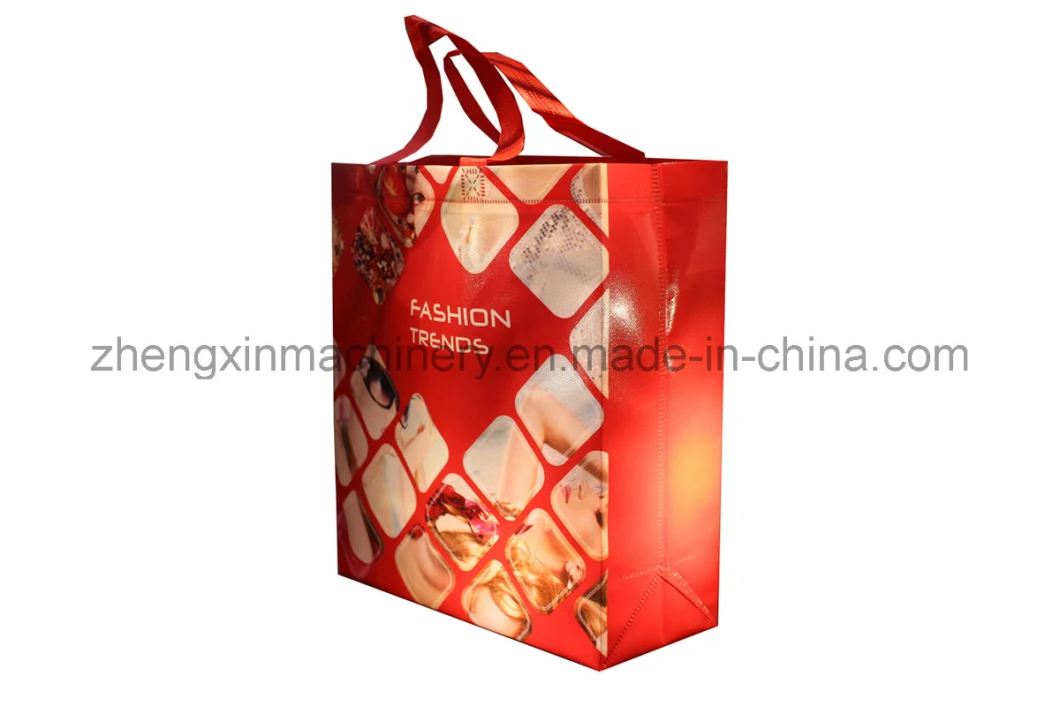

Bag Smaples:
Three dimensional laminating bag machine:
Packing & Delivery:
1.Before packing, we grease the machine with white oil to make metal parts rustproof and shining forever.
2.Our standard packing is strong wooden pallet(steel channel pallet is avaiable too)with film cover;
3.Wooden case is avaiable or according to the customer's requirements.
About Zhengxin:
FAQ:
1. How long will your engineer reach our factory?
Within one week after machine arrival your factory.
2. How many days will you finish installing ?
We will finish installation and training within 15days.
3. What should we charge for your engineer?
You should charge for the cost of our engineer's visa , air tickets, hotel, food ,and also their salary 80USD one day per person.
4. How long is your machine's warranty period?
All our machine have one year guarantee, starting from finished installation.
5. How could we do after one year warranty period?
We also can do service for you, but you need pay salary for my technician 80USD/day.
6. How could we do if the parts broken within warranty?
We would express the free replacement parts during the warranty date.
7. Does your engineer understand English?
Our engineer understand a little English. All our engineer have more than five years machine installation experience. In addition, they can use body language to communicate with customer.
8. Can you help us find any engineer in our location?
Of course, we will check and inform you as soon as possible.
9. How do we solve the machine problem after your engineer leaving?
Generally speaking, there will be no problem after finish installing. In case you have any problem. You can contact our sales at any time. Our engineer will take a solution video according your description.
10. How many worker do we need running those machines?
Except Two for bag making machine, flexo printing, slitting, ultrasonic sewing, hydraulic punching machine only need one person for each.
More Details , Kindly contact with me.
